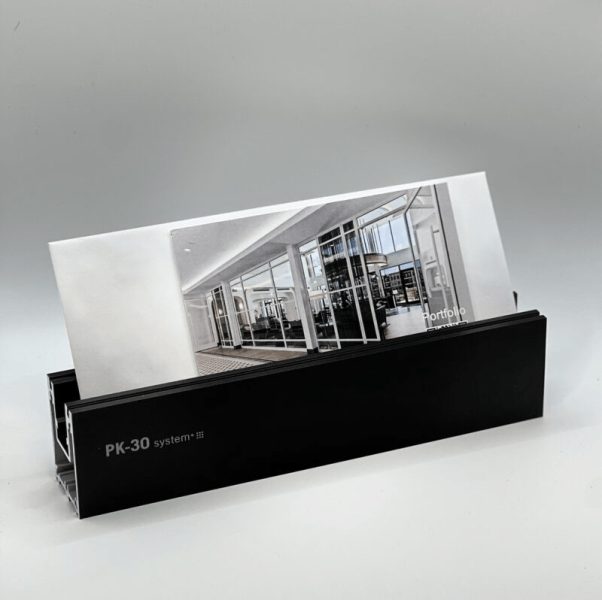

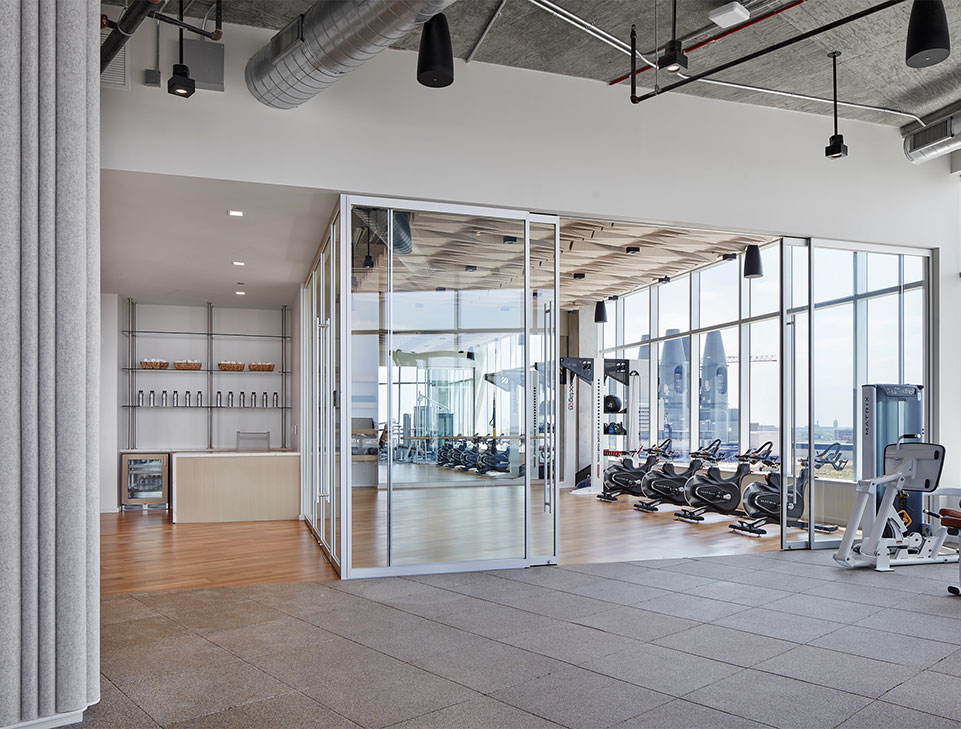

The PK-30 glass wall system is a meticulously designed, low-profile aluminum glazing framework. The PK-30 System offers a wide variety of glass door configurations including: demountable partitions, sliding, hinged and pocket doors, bi-fold systems, folding walls and fixed panels.
PK-30 is suitable for a wide variety of applications, including: corporate, education, institutional, hospitality, museums and retail spaces.

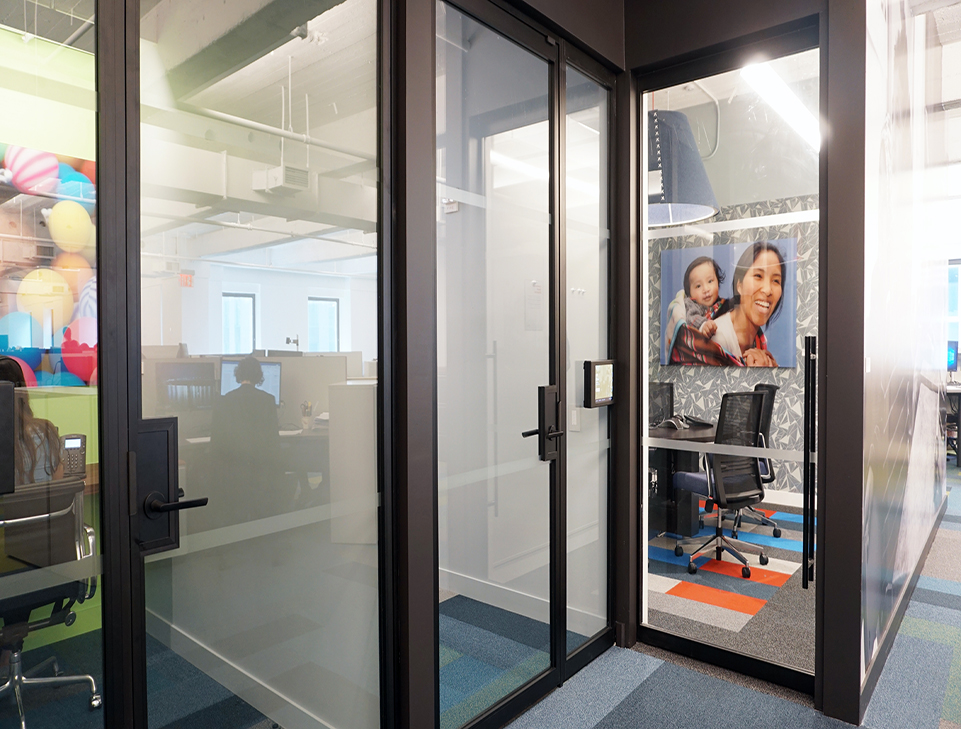

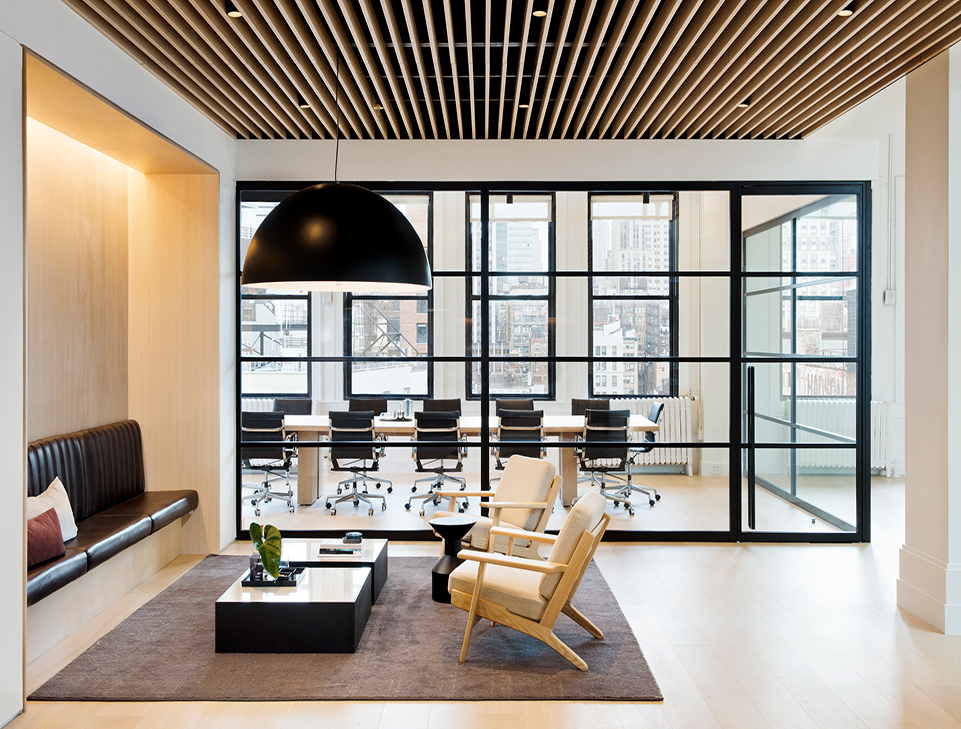

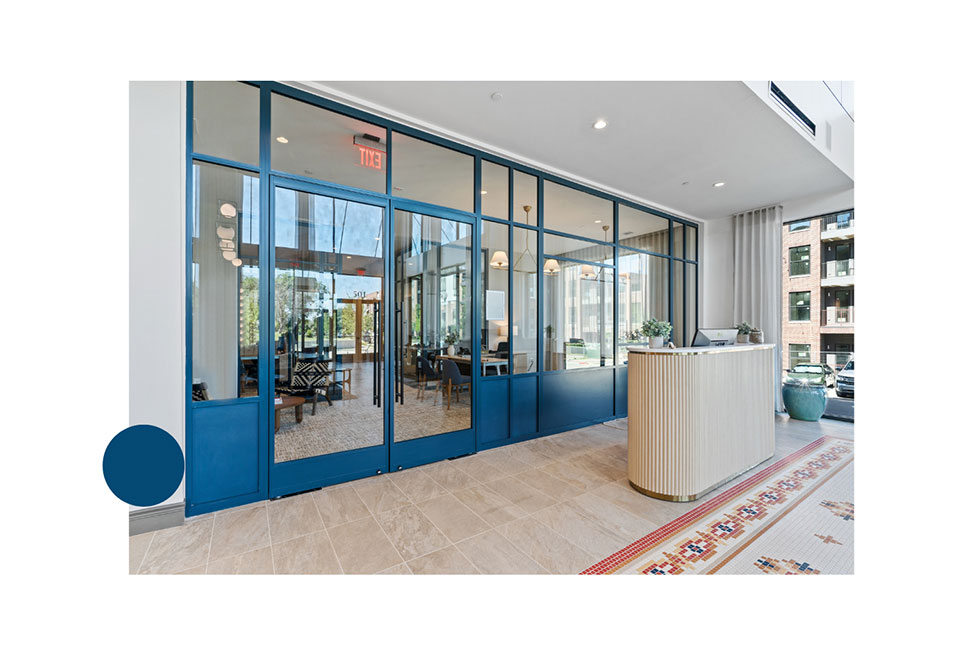

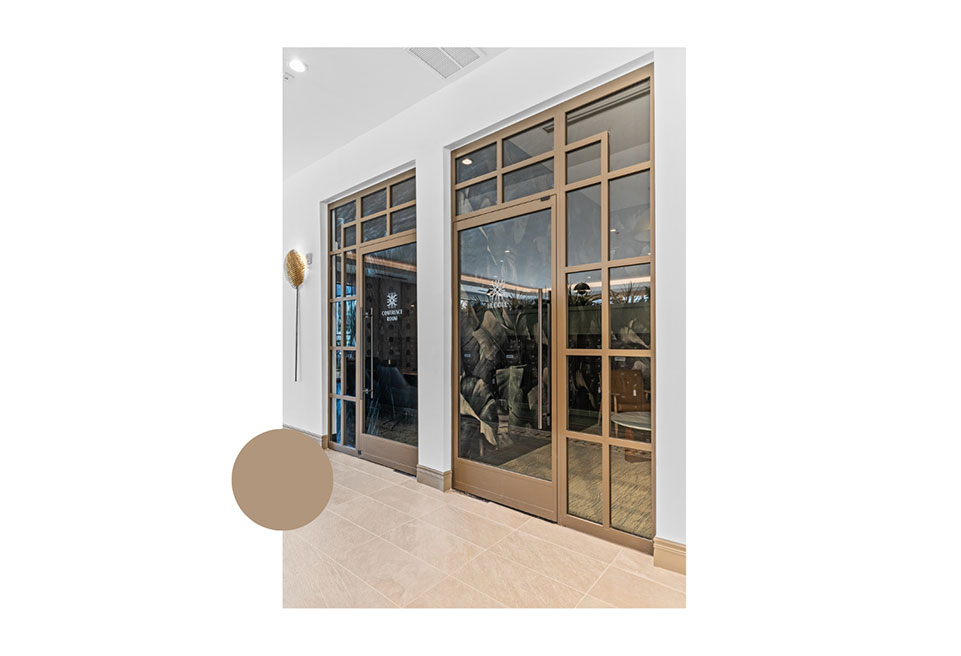

PK-30 System’s custom swing doors include a proprietary center-hung pivot hinge along with standard door heights up to 10 feet. Transoms, ancillary hardware and kick-plates are also available. Wood doors are available in a factory finish incorporating pre-machined hardware to save time and ensure quality.

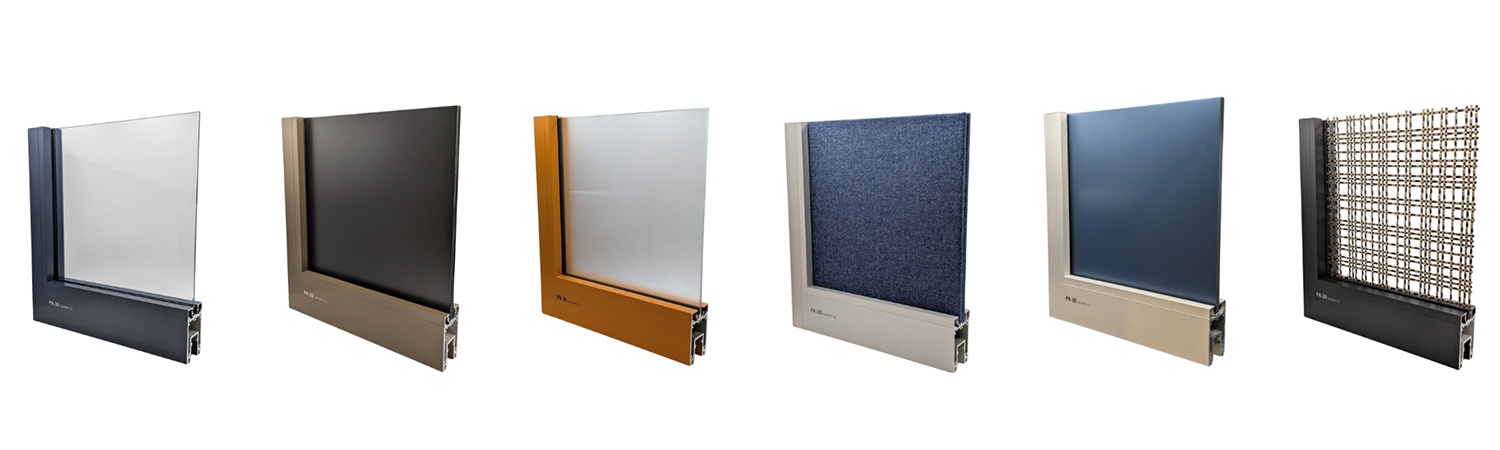

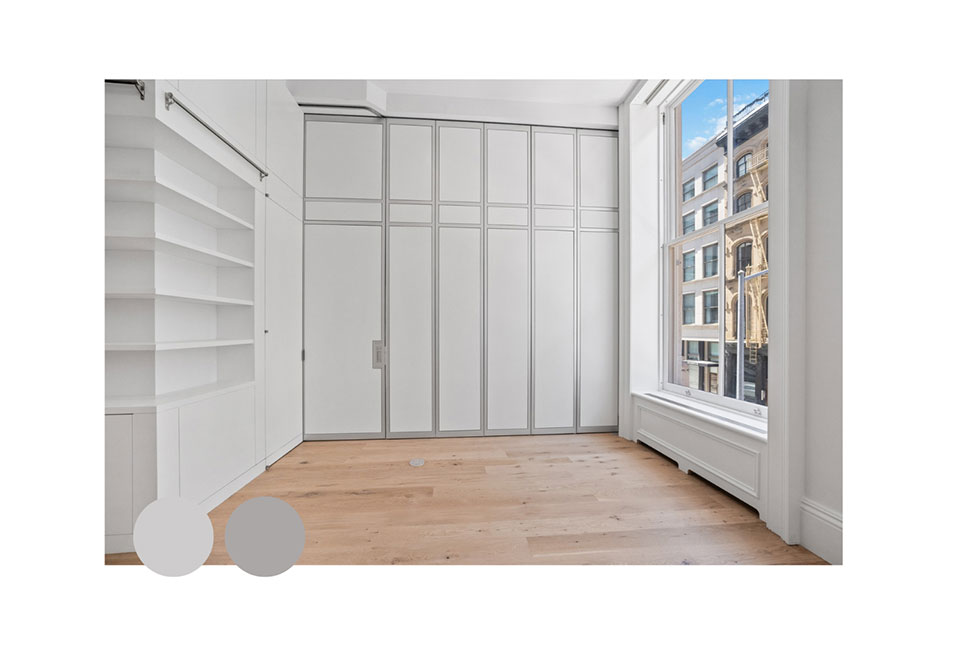

PK-30’s standard fixed panels are available up to 12’ high or 12’ wide. Panel-to-panel connectors ensure a consistent 1/8” reveal between panels. The system accepts any panel material from ¼” to 9/16” inch including white board, metal panels, clear, opaque or translucent.

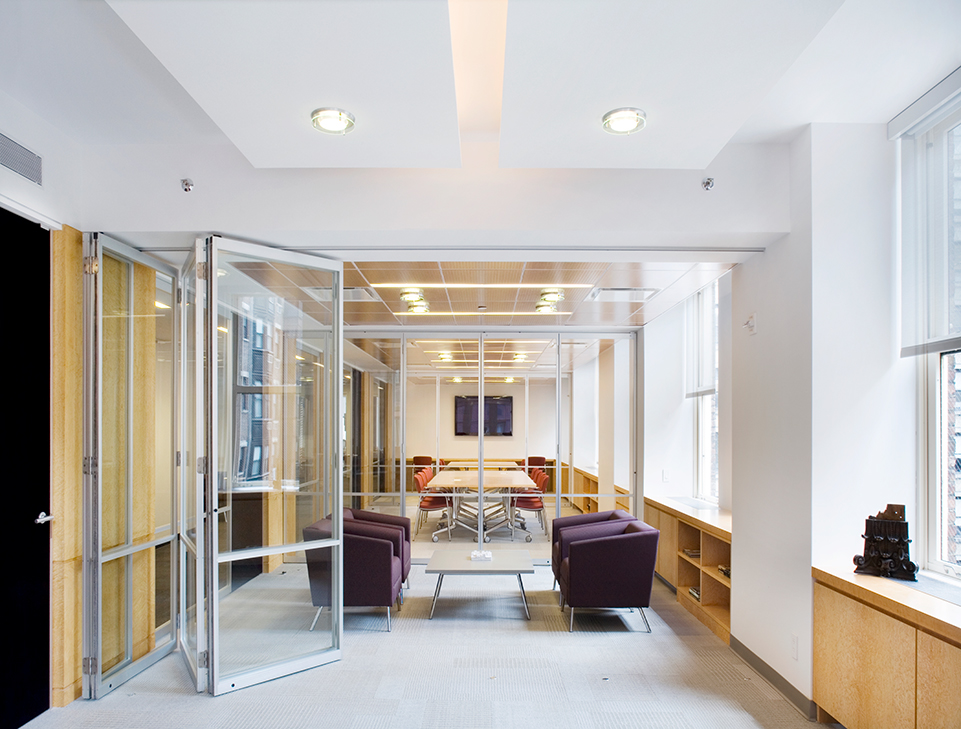

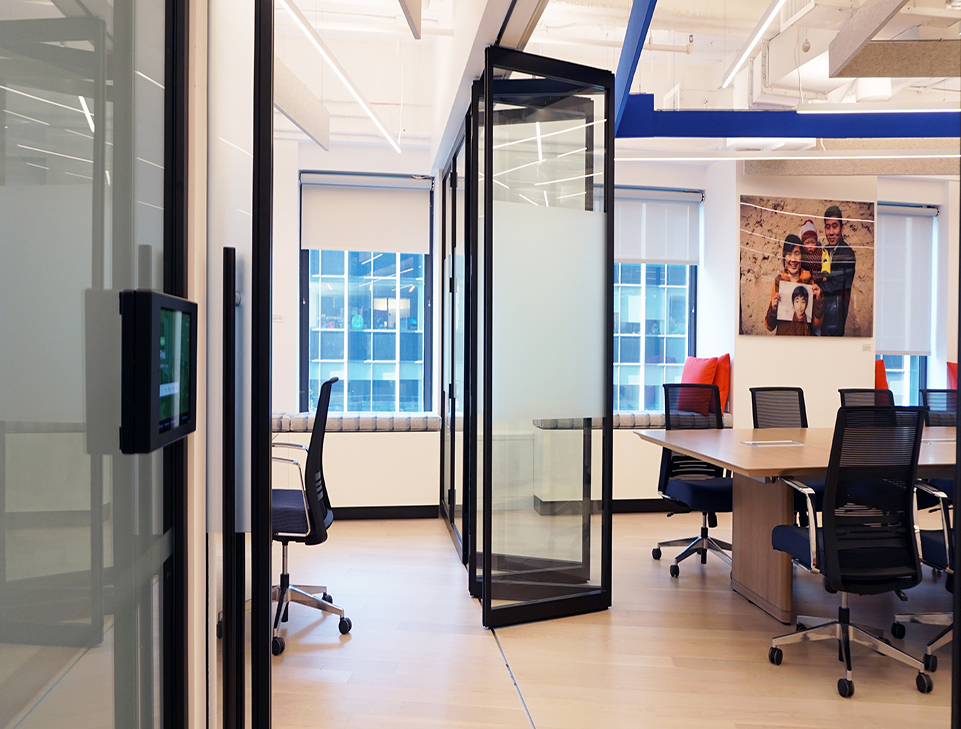

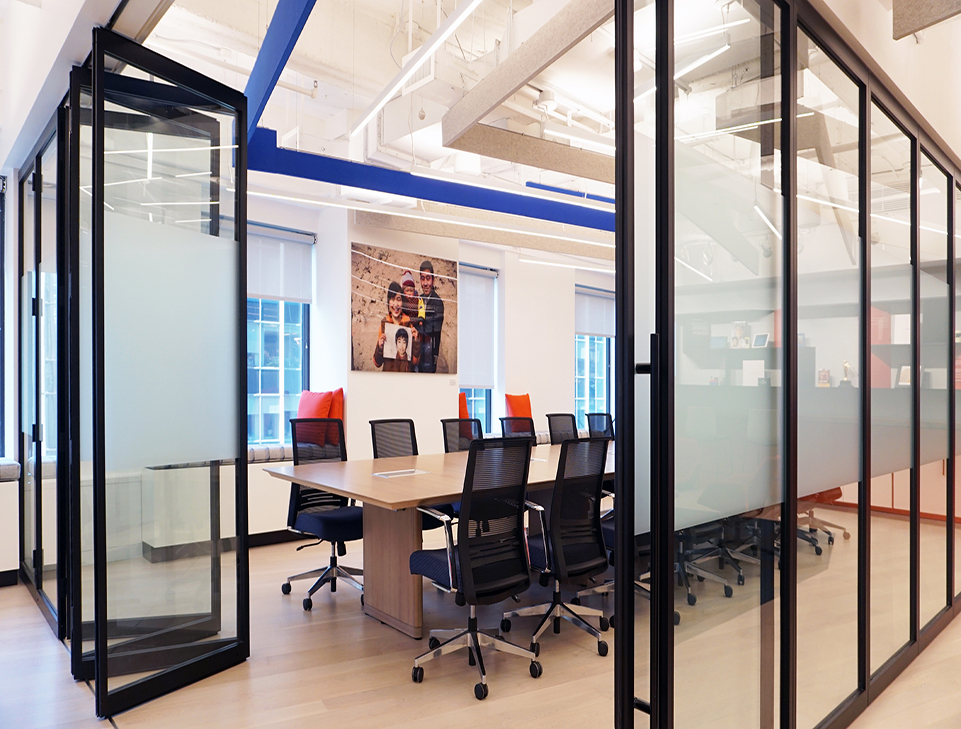

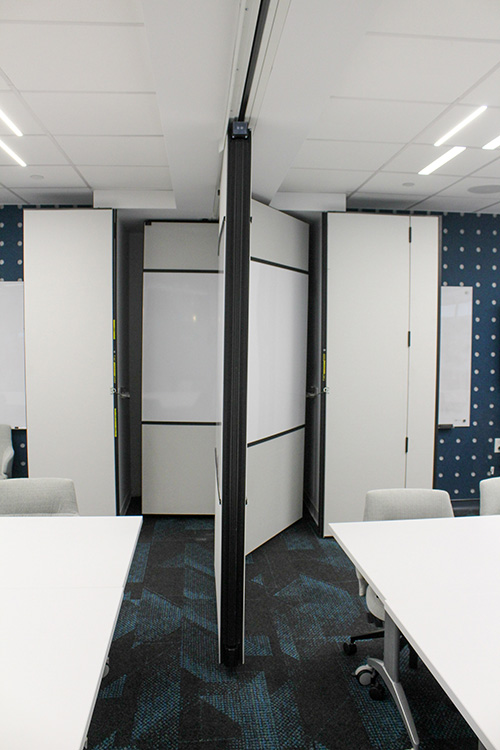

PK-30 System offers two folding operable wall types: Centerfold and Varifold. Centerfold’s suspension point is located in the center panel. Wide installations are possible without the need for bottom guide channels. Varifold is the bi-folding partition with a bottom guide for more stability. Maximum panel widths may reach approximately 40” and 12’ high.

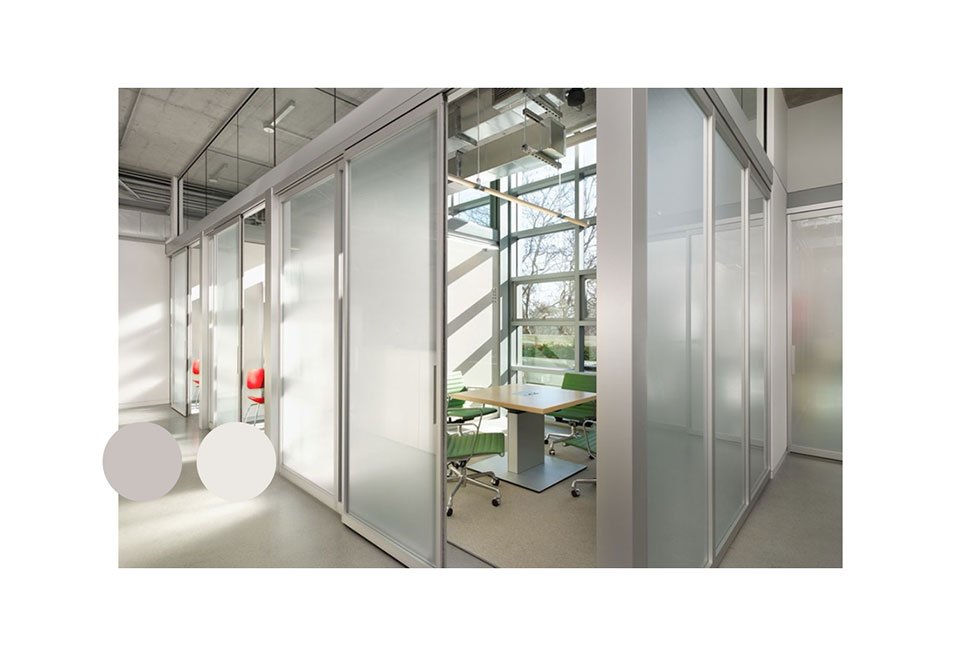

PK-30’s sliding stacking walls are ideal for corporate, retail or hospitality spaces. Panel heights of up to 12’ are possible with a pluggable suspension track system ideal for large-scale installations. Stacking may be parallel or perpendicular to the track. A stationary egress door is available for the system.
PK-30 modular office pods offer small private spaces to match your glass wall system installation. Office pods may have open ceilings and can be easily relocated in the existing office space or if your business moves to a new location.

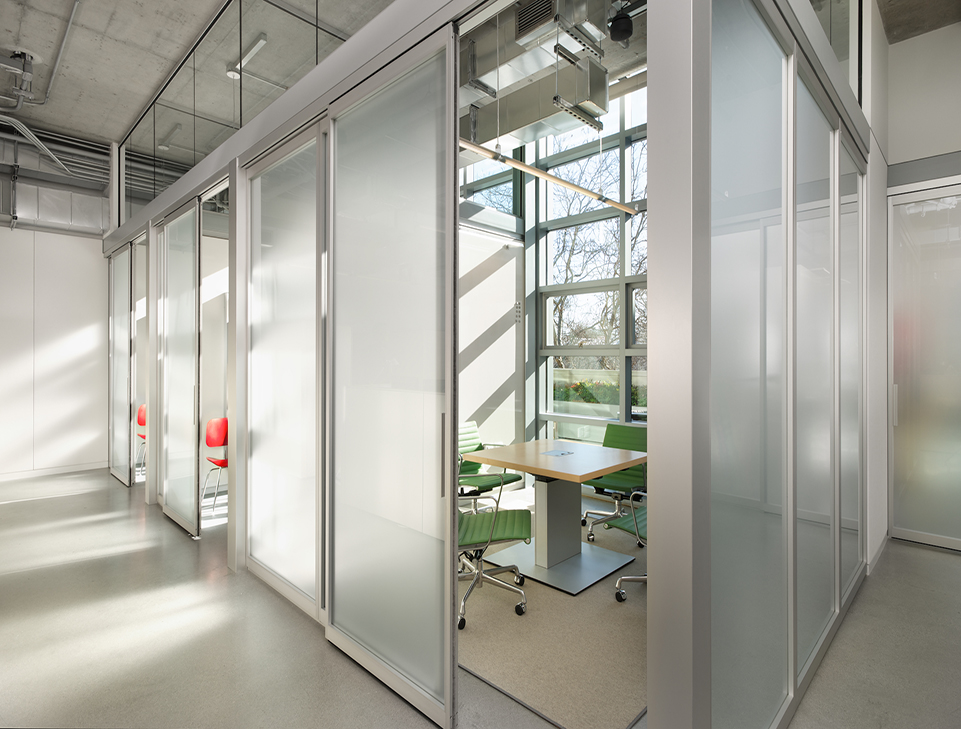

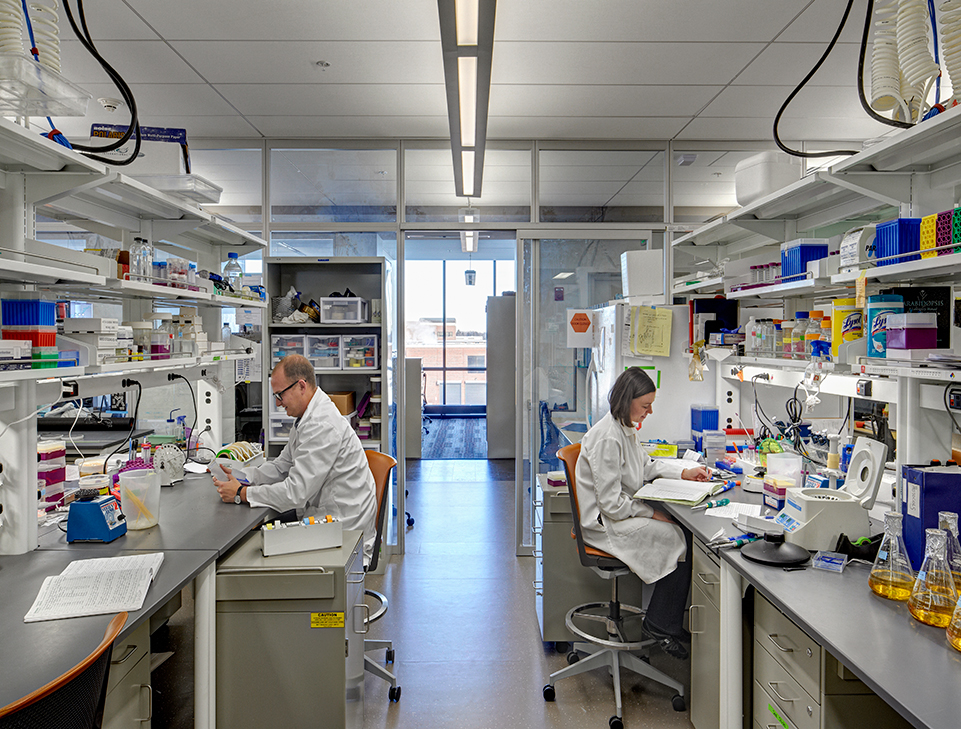

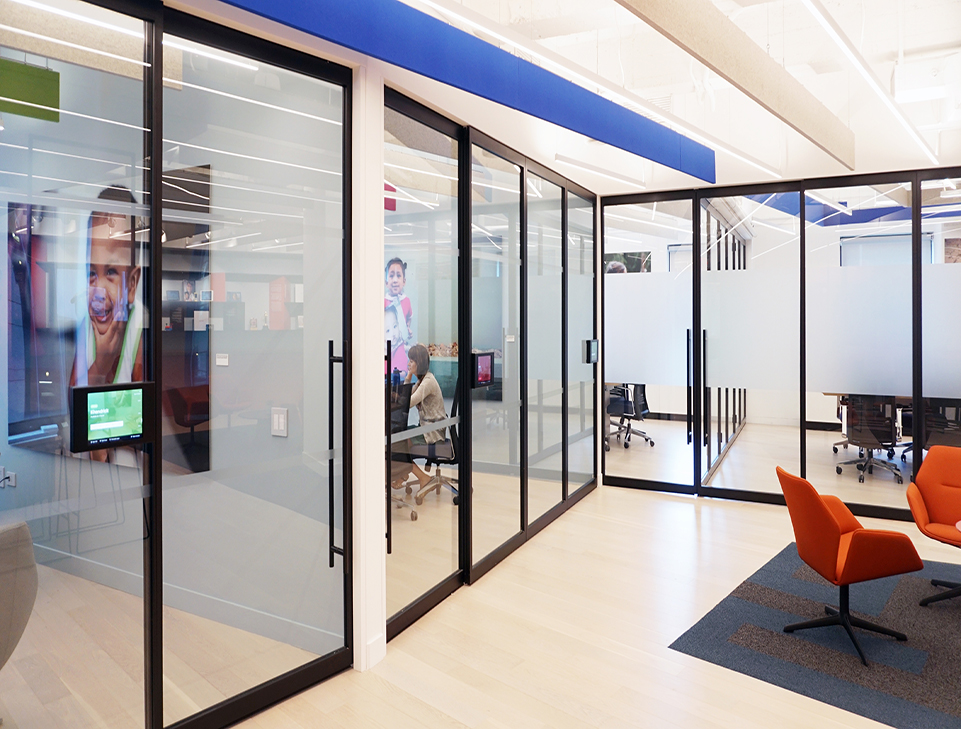

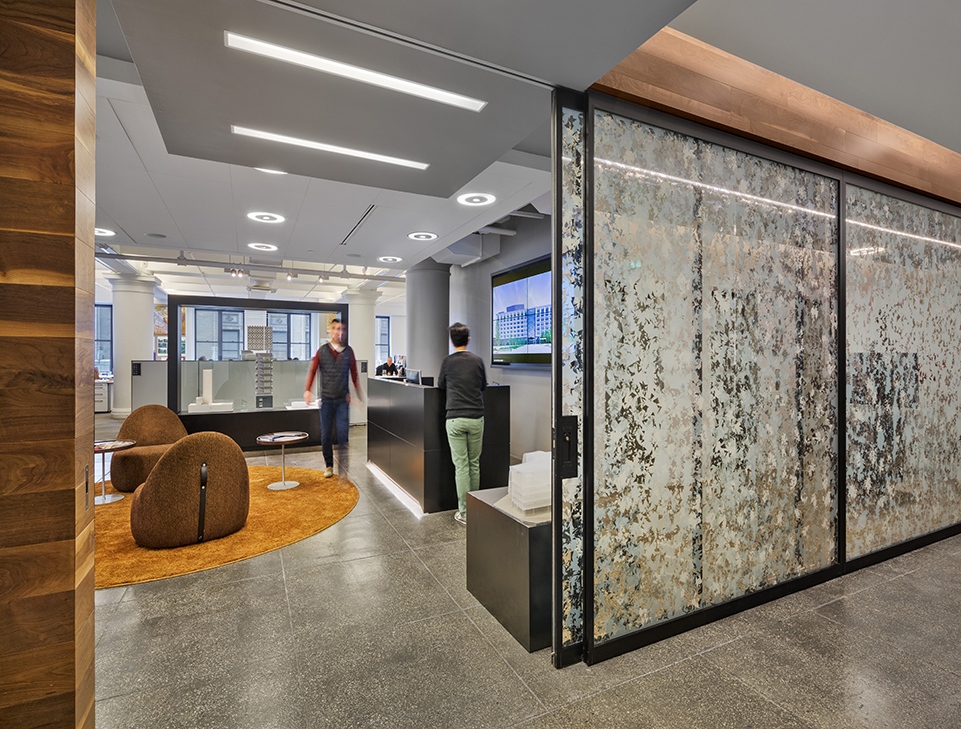

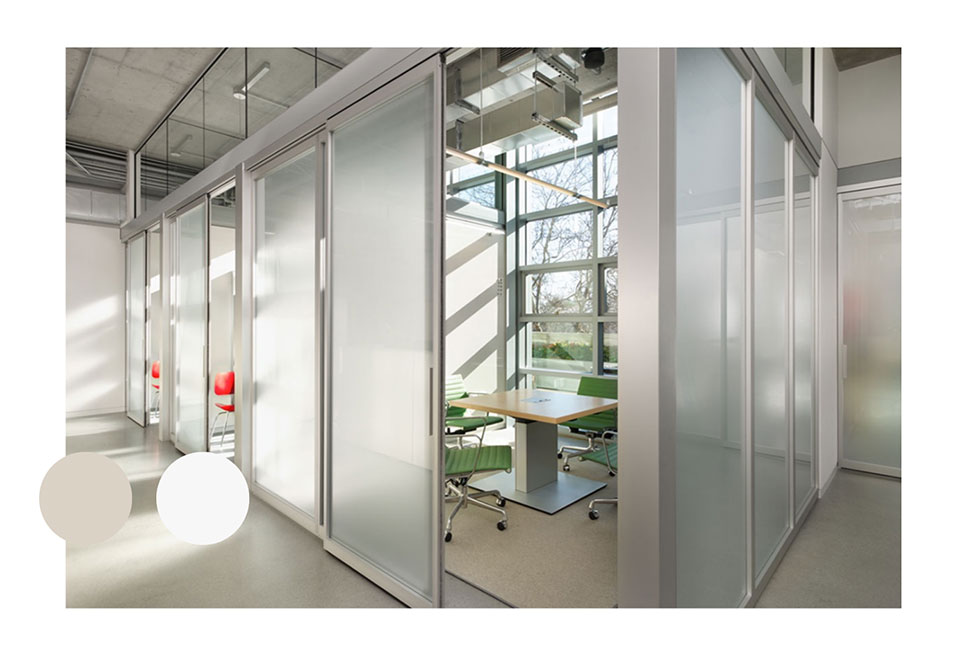

PK-30’s standard sliding doors are available up to 10’ wide or up to 12’ high. A variety of door types including: double and triple telescoping pocket doors are available. A selection of hardware solutions allow further customization of this quiet and smooth sliding door system.

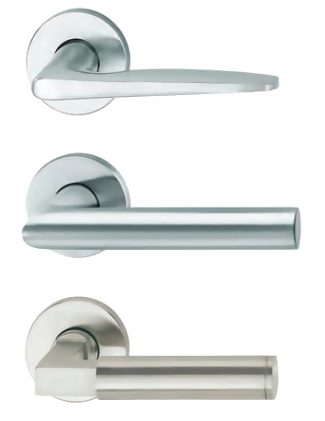

Choose from FSB’s extensive selection of levers,
knobs in various metals and finishes.

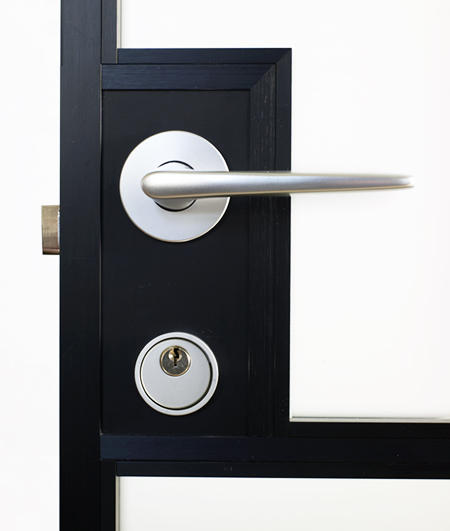

FSB has produced door hardware for over a century. FSB’s lever designs are so admired that four have been added to MoMA’s permanent collection. Swing Door full mortise ANSI A Grade 1 locks are available in all standard functions. FSB has an extensive selection of levers and knobs in various metals and finishes. FSB locks are supplied with standard North American cylinders allowing you to match building standard keyways.
FIXED + SWINGING DOOR OPERATION
FIXED + SLIDING DOOR OPERATION
CONTINUOUSLY HINGED (EDGE HUNG)

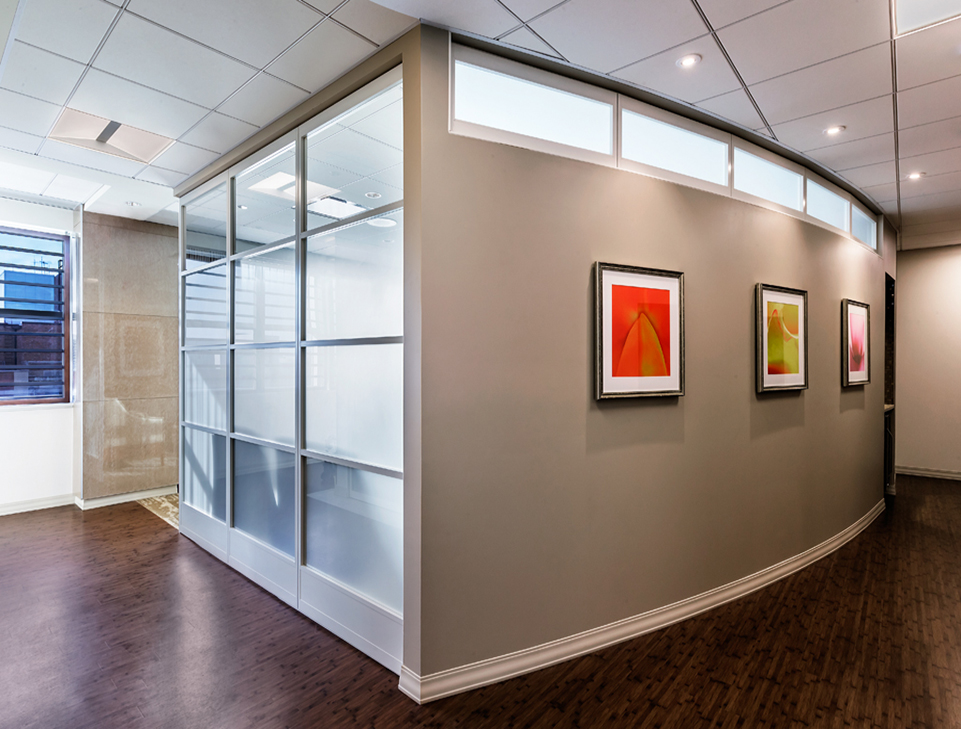

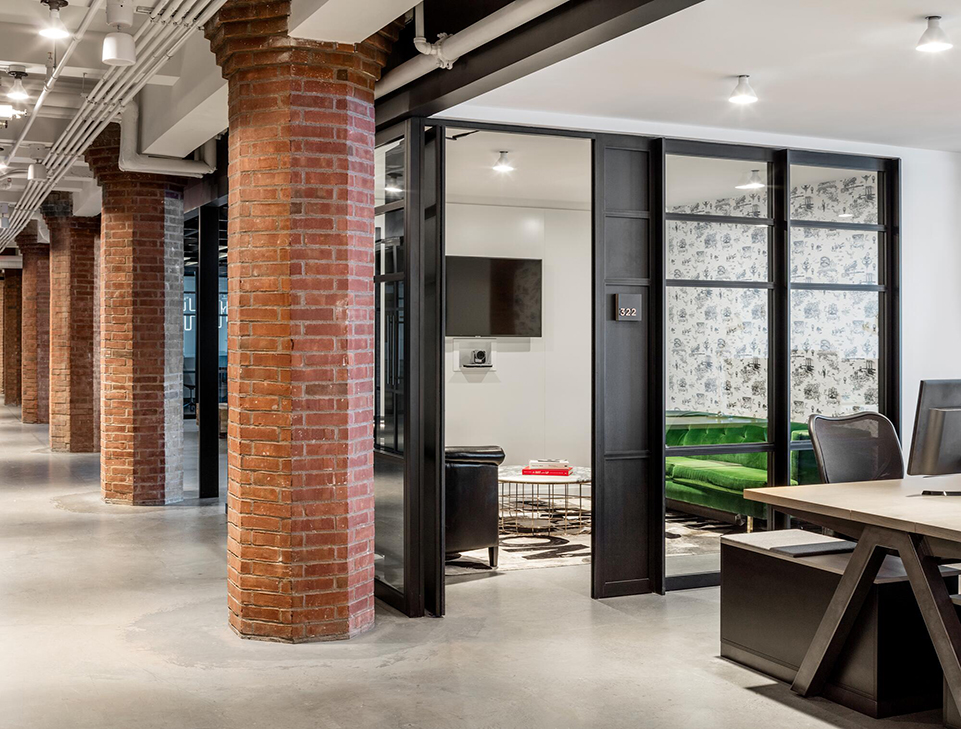

Fixed panels up to 12 feet in height and up to 12 feet in width are standard. Vertical, horizontal or crossed mullions may be specified, as well as floor to ceiling and partial height fixed panels.
Whether you want to slide, fold or stack, PK-30 System offers environmentally-friendly, innovative, and efficient solutions to divide interior space.
