CASE STUDY
Acoustic Precision Meets Refined Design in Private Dining Environments

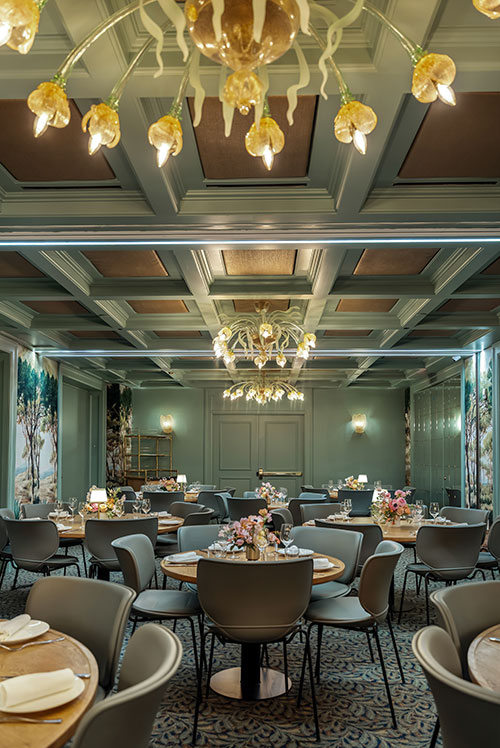

Amid the vibrant pulse of Manhattan, ilili Midtown captures the essence of Lebanese hospitality, refined design, and unforgettable experiences. From the warm glow of sculptural chandeliers to mirrored walls and hand-painted landscapes, every detail of the space invites guests to linger, connect, and celebrate.

To bring this vision to life, ModernfoldStyles collaborated with Nasser Nakib Architect and C & A Seneca Construction to create private dining rooms that combine elegance with acoustic performance and operational efficiency. The three rooms were equipped with two Modernfold Acousti-Seal Legacy single panel partitions, enabling the spaces to adapt to events of any size.

These operable walls do more than divide space, they define the guest experience. When closed, the rooms feel intimate and private, ideal for meaningful conversations, private celebrations, or executive meetings. When opened, the walls transform the spaces into a larger, flowing environment capable of hosting milestone parties or corporate events. Each panel is 3 inches thick, constructed from steel, and designed to deliver 50 STC acoustic performance, keeping events private and comfortable no matter the size.

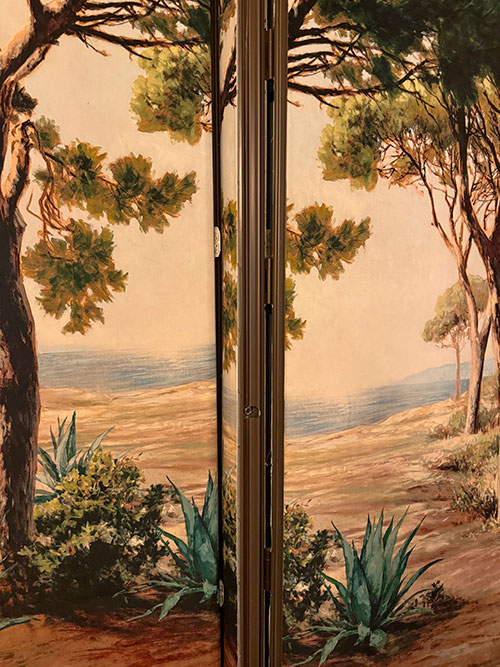

Every technical element was carefully integrated to ensure continuous operation without compromising design. The panels glide on steel four-wheel ball-bearing trolleys along a #17 heavy-duty track system with switches and curves. Fixed top seals, Sureset 2-inch manual bottom seals, and double-sided sweeps provide superior acoustic isolation. Three integrated 3’ x 7’ pass doors with push plates, hand pulls, roller latches, door closers, and stabilizing foot bolts maintain smooth service flow while matching the dark bronze trim of the panels. These pass doors were a unique feature of this installation, enabling unobstructed service and access without interrupting the aesthetic or acoustic performance. The panel finish was completed in the field through close coordination between our installation team and a subcontractor of C & A Seneca Construction. Using a custom fabric designed to complement the hand-painted landscapes, the finish perfectly aligns with the restaurant’s aesthetic, creating a cohesive and elevated look. To facilitate this process, the astragals and trim were carefully removed by our installers, allowing the finish work to be completed, and then reinstalled to ensure a precise and polished final result.




The combination of thoughtful engineering and refined design elevates the private dining experience at ilili Midtown. Guests feel the intimacy, warmth, and elegance of the space while benefiting from the flexibility to host both small and large gatherings. Every event becomes an experience that is curated, comfortable, and memorable.


See the versatility of the walls firsthand and learn how the panels are conveniently stored in this video.
ModernfoldStyles’ partitions demonstrate how technical precision and thoughtful design can work hand-in-hand to create spaces that are functional, beautiful, and emotionally resonant. Each wall, panel, and pass door contributes to an environment where hospitality is elevated, privacy is respected, and every gathering is enhanced by a space designed to adapt perfectly to its purpose. Discover how ModernfoldStyles can help bring your next project to life. Only 30 minutes New York City, our showroom invites you to see how we can design a space tailored to your vision.

CLIENT:
ilili Midtown
LOCATION:
157 East 53rd Street
GENERAL CONTRACTOR:
C & A Seneca Construction
ARCHITECT:
Nasser Nakib Architect
PRODUCTS:
2 Modernfold Acousti-Seal Legacy
